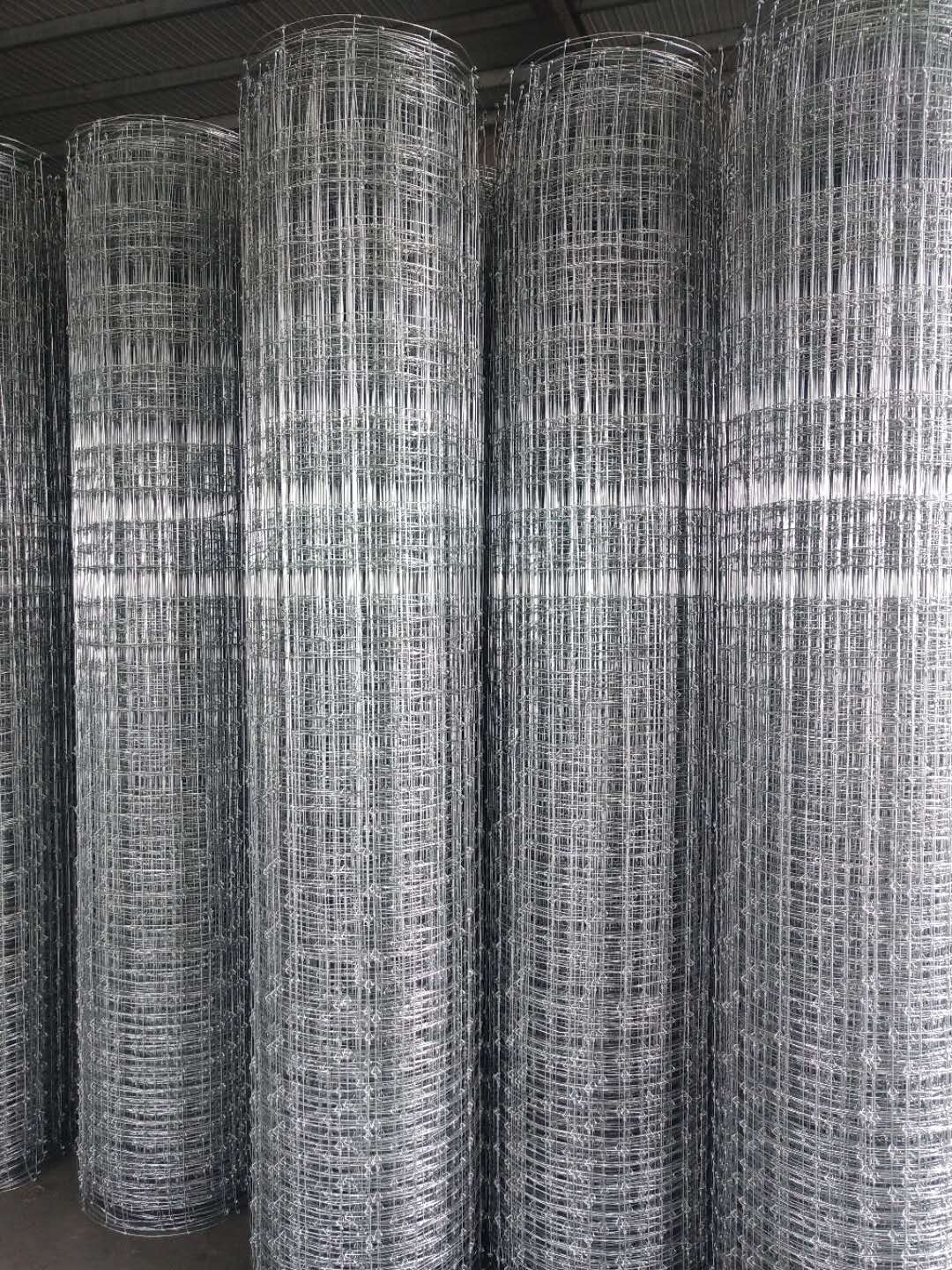

High Tensile Strength Galvanized Steel Field Fence / Sheep Wire Mesh Fence / Deer Fence / Farmland fence
Product details
1.Material: Carbon steel wire, galvanized iron wire , or galvanized steel wire
2.Surface treatment:
Class A: Hot dipped galvanized hinge joint field fece/ fix knot field fence (zinc coated:220-260g/m2)
Class B: Hot dipped galvanized hinge joint field fence/fic knot field fence (zinc coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence/ fix knot field fence (zinc coated:15-20g/m2)
3.Mesh Wire diameter:1.8mm~2.5mm
4.Edge wire diameter: 2.0mm~3.2mm
5. Mesh Opening in cm:
(warp)15-14-13-11-10-8-6cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65cm (6" 7" 8" 15" 20" 24" 25")
6.Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m. We can also make as the request of the customer.
7.Length: 115 inch(50m) or 330 inch(100m); (According to the request of the customer)
8. Application: Used for borders in fields and grassland for breeding of deer, cattle and other animals.
9. Characteristics: Corrosion resistance, high tensile strength wire, durable against hit etc.
10. Products names: field fence, grassland fence, cattle fence, stock fence, animal fence, deer fence, Horse Fence etc.
11. Packing: packed by plastic film , load bulk, or wooden pallet
| Item | Type | Mesh | Top and bottom Wire diameter (mm) | Inner wire diameter(mm) | Roll diameter(mm) | Unit weight (kg/roll) | |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 | 19.3 | |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 | 20.8 | |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 | 21.6 | |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 | 22.6 | |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | 23.6 | |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 | 23.9 | |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | 26.0 | |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 | 27.3 | |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | 28.4 | |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 | 30.8 | |
| Remarks: 1.The meaning of the type: the first group means the numbers of horizontal wire; the second group means length of the mesh size; The third group numbers mean the height of the fence, the fourth group stands for the standard length of the roll. 2. The width is from 0.8 meter up to 2.0 meters. The length is 50 meters or 100 meters per roll. 3. Surface treatment can be made with electro galvanized or hot dipped galvanized. The latter is much more durable than the former. 4. Special size can be customized according to detailed drawing. |
any interest, don't hesitate to inform ,
Andie lee
phone/wechat/ whatsapp: +86-15203118350
