Brand Name : YAQI MESH
Model Number : YQ - Q07
Certification : ISO 9001 / SGS
Place of Origin : Hebei , China
MOQ : 1 Roll
Price : Negotiable
Payment Terms : L/C, D/P, T/T, Western Union
Supply Ability : 50000 Roll / Month
Delivery Time : 5-15 days after receiving deposit
Packaging Details : Metal pallets or as you request .
Material : Galvanized iron wire, Galvanized steel wire
Wire Thickness : 1.0mm - 6.0mm
Opening : 20 x 20mm , 50 x 50mm , 60 x 60mm ......
Width : 0.5m - 6m
Length : 4m - 50m
Surface : Electro galvanized , hot dipped galvanized
Iron Flexible Galvanized Chain Link Fence, Pvc Coated Construction Fence
Product Description :
Chain link fence is made from galvanized or pvc coated iron wire, to fix with posts, brace and fittings to build a chain link fence system in the park, tennis court, airport and other places. Also can be used for animal breeding. It is mainly divided into galvanized, PVC, PE-coated three products with easy construction and maintenance, bright colors, which are the preferred products to beautify the urban environment.
Product Specification :
Galvanized Chain Link Fence/PVC coated chain link fence | ||||
wire diameter | mesh size | roll length | standard netting height | standard post height
|
mm | mm | m | mm | mm |
1 | 5*5 | 10 | 500 , 1000 | 1000 , 1500 |
1.2 | 10 * 10 , 20 * 20 | 10 | 1250 , 1500 | 2000 |
1.4 | 20 * 20 | 10 | 2000 | 2500 |
1.8 | 30 * 30 | 10 | 2500 | 3000 |
2.5 | 40 * 40 | 10 | 3000 | 3500 |
2.8 | 50 * 50 | 10 | 4000 | 4500 |
3 | 50 * 50 | 10 | 5000 | 5500 |
4 | 60 * 60 | 10 | 5000 | 5500 |
Chain Link Fence | |
Material | Galvanized iron wire or PVC coated iron wire |
Surface Treatment | PVC coated, PVC sprayed, electric galvanized, hot dipped galvanized |
Wire Thickness | 1.0-6.0mm |
Mesh Opening | 20x20mm,50x50mm,60x60mm,80x80mm,100x100mm etc |
Mesh Height | 0.5m - 6m |
Mesh Length | 4m - 50m |
Post & Rail Diameter | 32mm , 42mm , 50mm , 60mm ,76mm , 89mm etc |
Post & Rail Thickness | 1.5mm , 2.0mm ,3.0mm , 4.0mm , 5.0mm etc |
Product Features :
1.Woven diamond pattern provides strong, durable and flexible construction
2.Does not break, sag or roll up at the bottom
3.Long lasting service life
4.Strong, durable and flexible construction
5.Convenient transportation and installation
6.Weather resistance, corrosion and alkali resistance
7.Provides optional security and protection
Product Application :
chain link fencing is widely used in interior decoration , raising chicken , duck, goose , rabbit and the zoo enclosure , used in highway , railway , highway guardrail net facilities . Also used to protect and support seawall , slope , road and bridge , reservoirs and other civil engineering . Is the superior material of the flood control and flood fighting .
![]() |

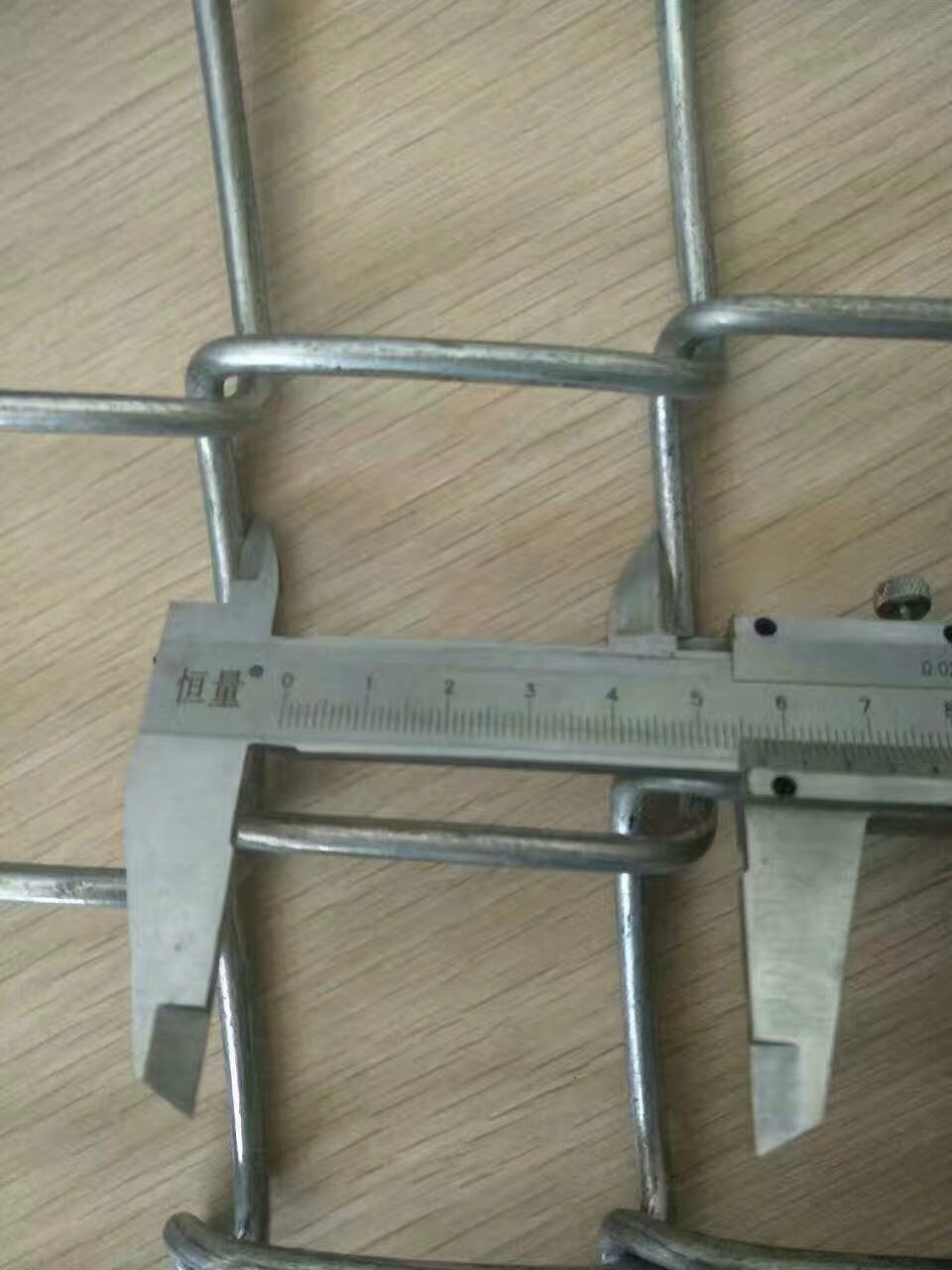

Iron Flexible Galvanized Chain Link Fence PVC Coated For Construction Images |
