2 . 5 mm Core Wire Galvanized Concertina Razor Barbed Wire , Triple Standard Concertina Wire
Product Introduction
Razor Wire Concertina Wire is also named concertina coils,concertina wires. It is a kind of modern security fencing materials with better protection and fencing strength.
It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with 1200mpa tensile strength or stainless steel wire).
It is a new type of protection fence. With the character of beautiful, economical, secure fencing, construction of facilities, etc.
Product Feature
Razor wire Concertina Wire is a new developed fencing mesh which has the characteristics of a good deterrence effect, beautiful appearance, easily constructed, economical and practical, anti-corrosion, anti-ageing, anti-solarization and durable.
Product Specification
| Razor type | Razor thickness (mm) | Wire diameter
(mm) | Razor length
(mm) | Razor width
(mm) | Razor space
(mm) |
| BTO-10 | 0.5 ±0.05 | 2.5 ± 0.1 | 10 ±1 | 13 ± 1 | 26 ± 1 |
| BTO-12 | 0.5 ±0.05 | 2.5 ± 0.1 | 12±1 | 15 ± 1 | 26 ± 1 |
| BTO-18 | 0.5 ±0.05 | 2.5 ± 0.1 | 18 ±1 | 15 ± 1 | 33 ± 1 |
| BTO-22 | 0.5 ±0.05 | 2.5 ± 0.1 | 22 ±1 | 15 ± 1 | 34 ± 1 |
| BTO-28 | 0.5 ±0.05 | 2.5 ± 0.1 | 28 | 15 | 45 ± 1 |
| BTO-30 | 0.5 ±0.05 | 2.5 ± 0.1 | 30 | 18 | 45 ± 1 |
| BTO-60 | 0.6 ±0.05 | 2.5 ± 0.1 | 60 ±2 | 32 ± 1 | 100 ± 2 |
| BTO-65 | 0.6 ±0.05 | 2.5 ± 0.1 | 65 ±2 | 21 ± 1 | 100 ± 2 |
| Ex. Dia. | No. of Turns | Standard Covering Length | Production Model | Remarks |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-12.18.22 | Cross type |
| 600mm | 86 | 14M | BTO-12.18.22 | Cross type |
| 700mm | 72 | 12M | BTO-12.18.22 | Cross type |
| 800mm | 64 | 10M | BTO-12.18.22 | Cross type |
| 960mm | 52 | 9M | BTO-12.18.22 | Cross type |
Product Application

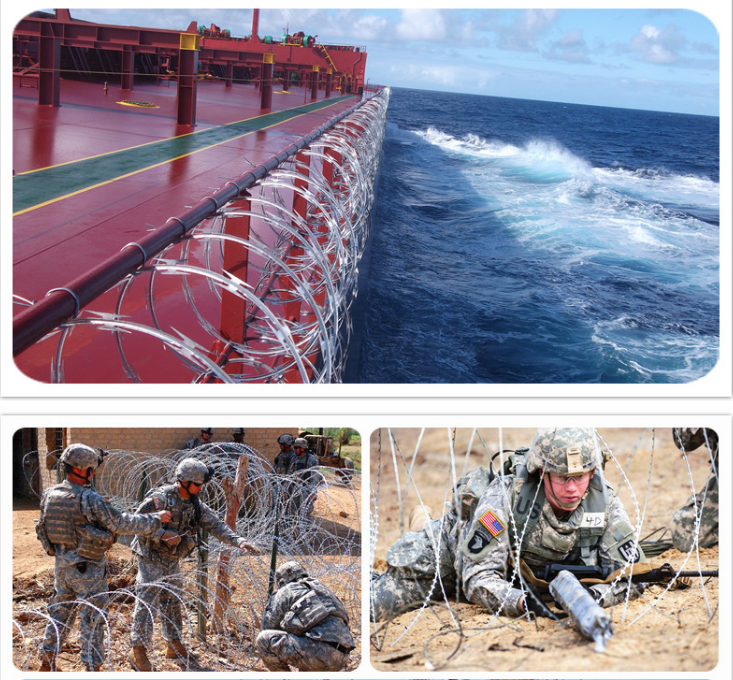

Razor wire concertian wire used in many high security applications, It is typically found in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers,
Governments buildings or other security facilities. Also used for division of railways, highways, etc, as well as agricultural fence.
