Rust Proof Galfan Coated Welded Gabion Box ,30CM*50CM*1M Hot Dipped Galvanized Welded Stone Box
Welded Gabion Box Description
HESCO defensive barriers / Defensive Barriers , also named as Hesco bastion, Hesco defense wall,
Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion
box, Stone cage etc.
The HESCO defensive barriers / Defensive Barriers is a kind of modern gabion for Military fortification and
Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in
separate cell or some cells joint together .
Welded Wire Mesh Gabion Feature
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
3.No collapse even under big scope of deforming.
4.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Less transport freight. It can be folded together for transport and further installation.
Install of welded gabion:
How to install welded gabion box?
Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal
bracing, and crimped over the line and cross wires on the front and side faces. None are needed in
interior cells.
Step 4. Gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of
the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with
graded stones.
Welded Gabion Box Application
1. Control and guide of water or flood.
2. preventing of rock breaking.
3. Rock fall protection.
4. water and soil protection.
5. Bridge protection.
6. strengthening structure of soil.
7. Protection engineering of seaside area.
8. Port project.
9. keep off dust wall.
10. roadway protection

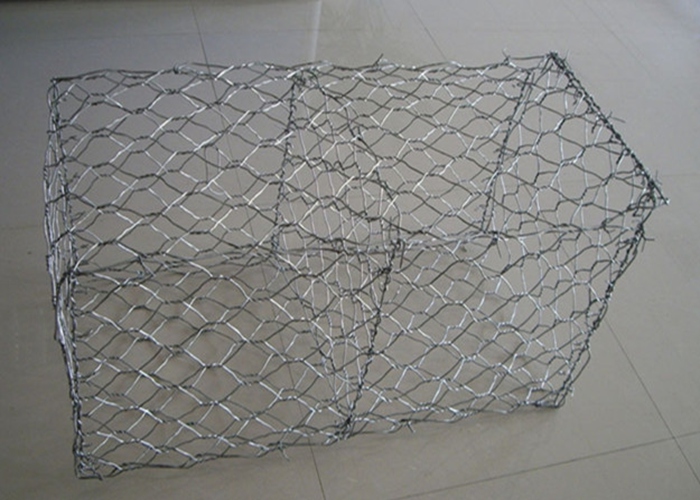

The function of the Gabion mesh:
1. Flexible:
Double-twisted hexagonal steel wire mesh structure tolerates against huge forces without breaking or cracking. It adapts itself to some degree of movement.
2. Durable:
Galvanized wire mesh has very long life. If the galvanized wire coated with PVC, the life of structure gets much longer. Better for hydraulic works
3. Permeable:
The hexagonal mesh structure of the Gabion filled with stones provide effective permeability throughout the structure, they are self-draining.
4. Economy:
Gabion Structures are very economical compared to the conventional structures especially when the stones filling the structure are close to the work area. Low maintenance is required for the construction works (Life Time Economy)
5. Strength:
The Gabion can absorb the huge amount of energy and very strong under tension generated by the nature. Well-made gabion structures can keep perfect condition for many decades.
Specifications Table:
| Mesh Opening (mm) | Wire Diameter (mm) | Strand |
| 60x80 | 2.0 - 2.8 | 3/5 |
| 80x100 | 2.0 - 3.2 | 3/5 |
| 80x120 | 2.0 - 3.2 | 3/5 |
| 100x120 | 2.0 - 3.4 | 3/5 |
| 100x150 | 2.0 - 3.4 | 3/5 |
| 120x150 | 2.0 - 4.0 | 3/5 |
| Gabion Basket |
Length
(m) | Width
(m) | Height
(m) | Number of
Cell(each) | Volume
m3 |
| 2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
| 3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
| 4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
| 2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
| 3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
| 4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
| 2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
| 3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
| 4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
NOTE: Other specifications can be made as customer's request.
Gabion Dimensions Table:
| Dimensions (m) | Diaphragm Numbers | Surface Coating |
| 1 x 1 x 1 | 0 | Galvanized (Optional for PVC) |
| 2 x 1 x 1 | 1 | Galvanized (Optional for PVC) |
| 3 x 1 x 1 | 2 | Galvanized (Optional for PVC) |
| 2 x 1 x 0.5 | 1 | Galvanized (Optional for PVC) |
| 3 x 1 x 0.5 | 2 | Galvanized (Optional for PVC) |
